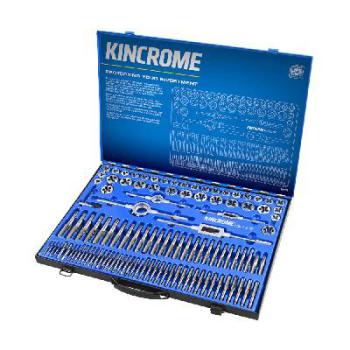

KINCROME TAP & DIE SET UNC/UNF/METRIC 110 PIECE 190822

 
 
 
 
 
 
 
 
KINCROME TAP & DIE SET UNC/UNF/METRIC 110 PIECE 190822
Product code: BF190822
Manufacturer code: 190822
KINCROME TAP & DIE SET UNC/UNF/METRIC 110 PIECE 190822

or Register to view pricing

Tap and Dies manufactured from Tungsten steel. Suitable for cleaning and cutting threads on mild steel and aluminium. Contents held in plastic insert within a plastic storage case.

•1 Adjustable Tap Wrench:1/8" - 1/2" (3 - 13mm) capacity
•1 Adjustable Tap Wrench:1/4" - 3/4" (6-19mm) capacity
•1 Die Holder for 1"(25mm) O/D Dies
•1 Die Holder for 1.1/2"(38mm) O/D Dies
•1 "T" type wrench 1/4"(6mm) capacity
•70 taps (1 of each taper and bottoming taps in 35 sizes as mentioned below)
•22 1" O/D round dies for sizes up to M11 x 1.5
•13 1.1/2" O/D round dies for sizes up to M18 x 1.5.
Brand:Kincrome
Size Range:4NC40;6NC32;8NC32;10NC24;10NF32;12NC24;1/4 in NC20;1/4 in NF28;1/4 in NS24;1/4 in NS40;5/16 in NC18;3/8 in NC16;3/8 in NF24;7/16 in NC14;7/16 in NF20;1/2 in NC10;1/2 in NF20;9/16 in NC12;9/16 in NF18;5/8 in NC11;5/8 in NF18;3/4 in NC10;3/4 in NF16;1/8 in NPT27;1/8 in NPT18;M6 x 1.0;M8 x 1.25;M10 x 1.5;M10 x 1.0;M11 x 1.5;M12 x 1.25;M12 x 1.75;M14 x 1.25;M18 x 1.5
Die Size Range:1 in Dies:M6 x 10;M8 x 1.25;M10.1.0;M10 x 1.5;M11 x 1.5;4NC40;6NC32;8NC32;10NC24;10NF32;12NC24;1/4 in NC20;1/4 in NS24;1/4 in NS32;5/16 in NC18;5/16 in NF24;3/8 in NC16;3/8 in NF24;7/16 in NC14;7/16 in NF20;1/8 in NPT27;1-1/2 in Dies:1/4 in NPT14;1/2 in NC13;1/2 in NF20;9/16 in NC12;9/16 in NF18;5/8 in NC11,5/8 in NF18;3/4 in NC10;3/4 in NF16;M12 x 1.25;M12 x 1.75;M14 x 1.25;M18 x 1.5
Thread Type:NPT/UNF/UNC
Tap Material:Tungsten Steel
Die Material:Tungsten Steel
Die Type:Round
Number of Pieces:110
Set Includes:(1) Adjustable Tap Wrench 1/8" - 1/2" (3 - 13 mm) Capacity;(1) Adjustable Tap Wrench 1/4" - 3/4" (6-19 mm) Capacity;(1) Die Holder for 1"(25 mm) O/D Dies;(1) Die Holder for 1.1/2"(38 mm) O/D Dies;(1) "T" Type Wrench 1/4"(6 mm) Capacity;(70) Taps (1 of Each Taper and Bottoming Taps in 35 Sizes as Mentioned Below);(22) 1" O/D Round Dies For Sizes up to M11 x 1.5;(13) 1.1/2" O/D Round Dies for Sizes up to M18 x 1.5
(1) Adjustable Tap Wrench 1/8" - 1/2" (3 - 13 mm) Capacity;(1) Adjustable Tap Wrench 1/4" - 3/4" (6-19 mm) Capacity;(1) Die Holder for 1"(25 mm) O/D Dies;(1) Die Holder for 1.1/2"(38 mm) O/D Dies;(1) "T" Type Wrench 1/4"(6 mm) Capacity;(70) Taps (1 of Each Taper and Bottoming Taps in 35 Sizes as Mentioned Below);(22) 1" O/D Round Dies For Sizes up to M11 x 1.5;(13) 1.1/2" O/D Round Dies for Sizes up to M18 x 1.5
