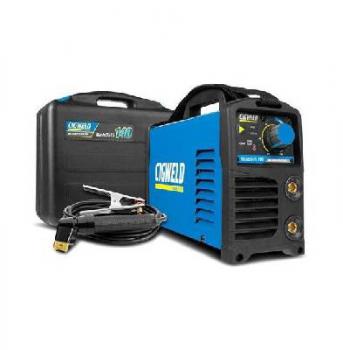

CIGWELD WELDSKILL 140 INVERTER 140A ARC/TIG WELDER W1008140

CIGWELD WELDSKILL 140 INVERTER 140A ARC/TIG WELDER W1008140
Product code: BFW1008140
Manufacturer code: W1008140
CIGWELD WELDSKILL 140 INVERTER 140A ARC/TIG WELDER  W1008140

or Register to view pricing


The WeldSkill 140 is a single phase welding inverter with a user-friendly control panel, practical push button operation for mode selection, clearly visible LED indicators and sturdy large control knob.

Compact and light-weight, this unit is a great addition to the shed ensuring the ultimate portability for the Home Handyman, Tradesman, Farmer or Maintenance Worker.

In addition to its appealing design and functional features, the WeldSkill 140 provides the added reassurance of a high quality welding inverter that complies to Australian Standards. Simply plug it in at home or into any standard 10 Amp power point and get welding right away.


Features:

240 Volt, 10 Amp Supply Lead & Plug Fitted to Power Source
Fully compliant to AS 60974.1-2006
Max. Electrode Size 3.2mm. Suitable for All Electrode Types Except AWS E6010 Cellulose
Over Temperature Cut Out Protection has been fitted to Power Source
Anti Stick. Helps to prevent the stick electrode from sticking to the work piece
Hot Start. Improves the arc start characteristics of stick electrodes
Arc Force. Assists when stick welding in a tight corner or joint fit-up
Current Range for this Power Source is 10A to 140A of DC Welding Output
DC Lift TIG function. Provides smooth starting and running characteristics across a broad range of applications
Rugged case with carry handle and carry strap
4m Long Electrode Holder & Work Leads
Twistlock Electrode Holder. Allows the electrode to be locked securely in place

Specifications:

Nominal Supply Frequency: 50/60Hz
Nominal Supply Voltage: 240V AC ± 10%
Cooling: Fan Cooled
Australian Standard: AS 60974.1-2006 / IEC 60974-1
Number of Phases: Single Phase
Welding Current Range: 10 - 140A
Nominal DC Open Circuit Voltage: 80V
Factory Fitted Supply Plug Rating: 10Amps
Effective Input Current (I1eff ): 10Amps
Maximum Input Current (I1max): 26.3Amps
Minimum Single Phase Generator Recommendation: 6.0kW (7.5kVA @ 0.8PF)
STICK (MMAW) Welding Output, 40ºC, 10 min: 140Amps @ 15% Duty Cycle
TIG (GTAW) Welding Output, 40ºC, 10 min: 140Amps @ 35% Duty Cycle
Protection Class: IP21S
Dimensions (L x W x H): 315mm x 120mm x 200mm
Weight (without cable): 4.7kg

Warranty:

3 Years Warranty on Power Source covered by Cigweld Australia
