Product code: MILWM18FIW2P12-0
Manufacturer code: M18FIW2P12-0
MILWAUKEE PACKOUT LARGE WALL PLATE 48228487

or Register to view pricing

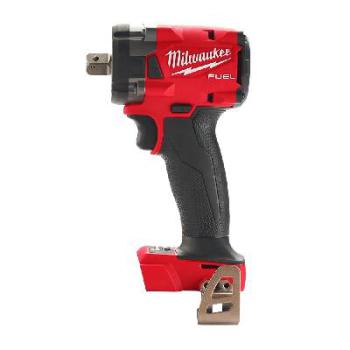

The M18 FUEL™ 1/2" Compact Impact Wrench with Pin Detent delivers maximum access in tight spaces, up to 339 Nm of nut-busting torque, and maximum workspace visibility. This battery-powered impact wrench measures only 124.5 mm in length, with a POWERSTATE™ Brushless Motor to provide the power to remove stubborn fasteners, even in confined spaces. The MILWAUKEE® 1/2" Compact Impact Wrench with Pin Detent has tri-LEDs that surround the anvil to deliver the user brighter light with fewer shadows. 4-Mode DRIVE CONTROL offers enhanced precision with a range of pre-set RPM and IPM levels, selectable from a single button on the tool. By selecting Mode 4, Auto Shut-Off Mode applies no more than 27 Nm of torque for hand-tight fastening applications to prevent overtightening. Mode 4 also features Bolt Removal Mode, where the tool delivers full torque output, then decreases RPMs once the bolt is loosened to prevent fastener drops. REDLINK™ PLUS Intelligence electronics make these controls possible while ensuring maximum performance, protecting the tool against overloads, over-heating, and over-discharge. The M18™ REDLITHIUM™-ION battery pack (not included) fits all M18™ tools, delivering more work per charge and more work over the life of the pack.

Pin detent for locking sockets in place securely, especially while working overhead
POWERSTATE™ Brushless Motor delivers up to 339 Nm of nut-busting torque
4-Mode DRIVE CONTROL provides control over output speed and power
Auto Shut-Off Mode prevents over-tightening and increases productivity by applying no more than 27 Nm of torque
Bolt Removal Mode delivers full torque output, then decreases RPMs once the bolt is loosened to prevent fastener drops
124.5 mm in length for maximum access in tight spaces
Tri-LEDs deliver high definition lighting to increase workspace visibility with less shadows
Works in up to 69kV environments
REDLINK™ PLUS Intelligence ensures maximum performance and protects from overloads, heating and over-discharge
Maximum Access in Tight Spaces

Up to 31mm shorter in length than the previous generation, allowing for more power in harder to reach places.
Up to 339Nm of Nut-Busting Torque

39Nm more torque than the previous generation, providing a whole new level of power in a compact form to complete the most challenging of applications.
Maximum Workspace Visibility

New tri-LED lighting creates a brighter light and less shadows around the work piece to maximise the visibility of the user.

Platform: M18 FUEL™
Anvil Type: 1/2" Square with Pin Detent
Fastening Torque: 339 Nm
Nut-Busting Torque: 339 Nm
DRIVE CONTROL: 4-Mode with Auto Shut-Off Mode & Bolt Removal Mode
RPM: 0 – 900 / 0 – 1,650 / 0 – 2,400 / 0 – 2,400
IPM: 0 – 1,000 / 0 – 2,400 / 0 – 3,500 / 0 – 3,500
*Batteries & Charger Not Included
