Drilling time and cutting performance are enhanced by the automatic feed function. The
WA-5000 slow start function, load sensor and overload stop assist greatly in the prevention of cutter damage.
NITTO KOHKI has incorporated a built in motion sensor for fail-safe protection.
Machine can be used in both automatic and manual modes with the over-load protection still active in the either mode.
Specifically made for high volume steel fabrication.

Features -

High-performance mechanism & high-tech components
Superior 75mm deep hole drilling- automatically cuts holes from 14mm dia. - 50mm dia.
Boosts productivity
One-touch cutter replacement
Powerful two speed drill motor 350/650RPM
Built-in lubrication system
Built-in motion sensor prevents cutter damage
Supplied in carry case

Standard Accessories -

Pilot Pin 0625 / 0650 / 0825 / 0850 : 1 pc each.
Chain Ass'y : 1 set
Chip Breaker : 1 pc.
Side Handle Ass'y : 1 set
3mm / 4mm Hex Socket Screw Key : 1 pc.
8mm x 10mm Spanner : 1 pc.
Cutting Oil 0.5 litre : 1 can
Plastic Case : 1 pc.
Gaurd Ass'y : 1 set

Optional Accessories -

OZBROACH: One-touch type: 25L and 50L
JETBROACH: One-touch type: 35L, 50L and 75L
Chuck Adaptor TP16233 (Manual mode only)
13mm keyed chuck NPCHUCKJ6

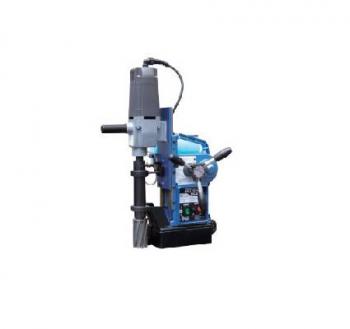

Model WA-5000
Power Source (Single Phase) 220~240V AC 50/60Hz
Rated Power Consumption 1,150W
Rated Current 5.4A
No Load Speed 350 / 650RPM
Magnetic Power Consumption 75W
Magnetic Holding Power 1,000 kgf
Magnetic Dimension 101mm x 201mm
Mass (Weight) 23kg

Hole-Cutting Capacity -

One-touch type JETBROACH:
* Hole Dia.: Max. 50mm - Plate Thickness Max. 75mm
One-touch type OZBROACH:
* Hole Dia.: Max. 50mm - Plate Thickness Max. 50mm
