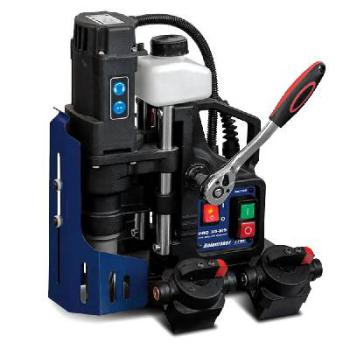

Holemaker PRO35 Magnetic Base Drill with Swivel Magnetic Base for Pipe Drilling HMPRO35-MS

Holemaker PRO35 Magnetic Base Drill with Swivel Magnetic Base for Pipe Drilling HMPRO35-MS
Product code: MAGDHMPRO35-MS
Manufacturer code: HMPRO35-MS
Holemaker PRO35 Magnetic Base Drill with Swivel Magnetic Base for Pipe Drilling HMPRO35-MS

or Register to view pricing

Holemaker HMPRO35-MS 1000W 35mm Magnetic Base Drill with Swivel Magnetic Base for Pipe Drilling - MADE IN EUROPE
The Holemaker PRO 35-MS has all the features of the standard PRO35, however with a swivel magnetic base it can be used to operate on convex (min diameter – 300mm) and concave (min diameter 1000mm) materials. Four individual swivel magnets adjust to the surface of detail so the machine does not require a perfectly flat material do operate. Additionally every magnet is equipped with variable holding force feature, this allows easy machine positioning while magnets are partially engaged.

The 35mm diameter and 35mm depth cutting capacity will suffice for most general hole making requirements. Other standard features include a gravity feed coolant system with a magnetically attached coolant bottle, which can be easily removed and attached to the work piece, allowing coolant feed whilst drilling in horizontal applications. The feed handles can be placed on either the left or right hand side, providing further versatility when using this compact machine in tight positions.
Dual rail slide system provides rigidity and eliminates the need for gib adjustments. The well designed cutter guard system is easy to use and practical.

Includes:
1 x Carry Case
1 x Cutter Guard & Safety Strap
Features:

Swivel magnet machine
4x Permanent rare earth magnets allow for external drilling of pipe minimum diameter 300mm or internal drilling of pipe minimum diameter 1000mm
Quality, Compact & Robust European Made Machine
Ideal for onsite & overhead tasks
Gravity feed coolant system with magnetically attached bottle
Input Power: 1000W Single Phase 240V
Motor Power: 920W
Max capacity:
Diameter: 35mm
Depth: 35mm
No load speed: 350rpm
Magnetic Dead Lift: 6000Nm On 25mm Steel Plate
Stroke: 70mm
Height: 343mm
Weight (without cable): 14kg
