DYNABOLT GAL M12 X 130

DYNABOLT GAL M12 X 130
Product code: DYNGM12X130
Manufacturer code: HS12130G
DYNABOLT GAL M12 X 130

or Register to view pricing

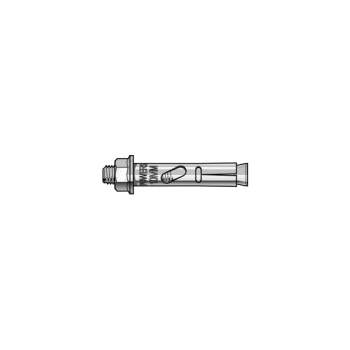

The Sleeve Anchor diameter is the same as that for the hole which eliminates layout or hole spotting. The Hex nut head and Countersunk head style anchors consist of a threaded plow bolt which has a cone shape at the bottom end. Eyebolt, Hookbolt and Flush head style anchors have a cone which is threaded to the bolt at the bottom end. Precision stamped tubular expansion sleeves are assembled over the bolt and butted against the tapered cone or the plow section at the bottom of the bolt. As the anchor is tightened, the specially tapered plow bolt or the tapered cone is drawn into the expansion sleeve to develop a locking action against the walls of the hole.
Brand:Powers
Type:Sleeve Anchor
Thread Size:M12
Fixing Hole Diameter:12 mm
Maximum Fixing Thickness:80 mm
Length:130 mm
Material:Carbon Steel
Finish:Galvanised
Head Shape:Hex
Drive Type:Hex
Package Quantity:25 per Box
