DYNABOLT ZINC M8 X 40

DYNABOLT ZINC M8 X 40
Product code: DYNZM8X40
Manufacturer code: HS0840
DYNABOLT ZINC M8 X 40

or Register to view pricing

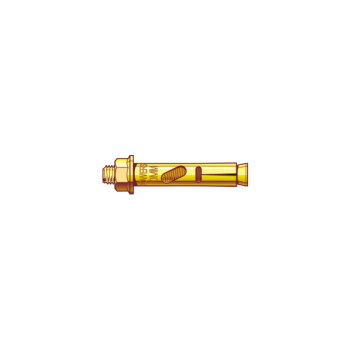

The Sleeve Anchor diameter is the same as that for the hole which eliminates layout or hole spotting. The Hex nut head and Countersunk head style anchors consist of a threaded plow bolt which has a cone shape at the bottom end. Eyebolt, Hookbolt and Flush head style anchors have a cone which is threaded to the bolt at the bottom end. Precision stamped tubular expansion sleeves are assembled over the bolt and butted against the tapered cone or the plow section at the bottom of the bolt. As the anchor is tightened, the specially tapered plow bolt or the tapered cone is drawn into the expansion sleeve to develop a locking action against the walls of the hole.
Brand:Powers
Type:Sleeve Anchor
Thread Size:M8
Fixing Hole Diameter:8 mm
Maximum Fixing Thickness:5 mm
Length:40 mm
Material:Carbon Steel
Finish:Zinc Plated
Head Shape:Hex
Drive Type:Hex
Colour:Yellow
Package Quantity:100 per Box
