Fume Extraction Fan Allclear Fa25 2500M2/Hr 1Ph/230V Weldclass 91025FA1

Fume Extraction Fan Allclear Fa25 2500M2/Hr 1Ph/230V Weldclass 91025FA1
Product code: BF91025FA1
Manufacturer code: 91025FA1
Fume Extraction Fan Allclear Fa25 2500M2/Hr 1Ph/230V Weldclass 91025FA1

or Register to view pricing

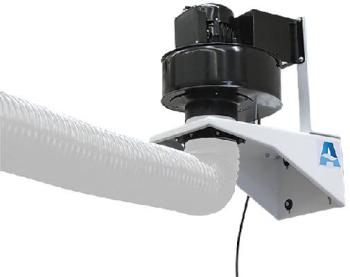

The ALLCLEAR FA25 Wall-Mounted Fan system is an efficient and cost-effective solution for removing dust and fumes, commonly used together with ducted systems where fumes are ducted externally and/or to large central extraction/filter units. This 240V extraction fan extracts airborne contaminants with minimal intrusion in tight workspaces. The pivoting suction arms are easy to position and stay securely in place. Choose from two arm lengths (3m and 4m) and enjoy features such as 2500m3/hr max airflow, 150mm diameter suction hose, a 160mm diameter intake nozzle hood, temperature resistance up to 120°C, a flexible PVC suction hose with a welded steel wire coil, and a wall-mounted bracket.

For dust and fumes - extraction fan only and does not include a filter, suitable "as-is" for mild / non-toxic airborne contaminants, and can be used for welding and grinding fumes if used together with a suitable filtration system
Available with 3m or 4m suction arms (sold separately to the fan)
Wall-mounted, for minimal intrusion in work spaces


Operates on ~230V 10A single phase power
Max air flow: 2,500m³ / hour
Motor size: 1.1kw

Includes
wall-mounting bracket and on/off swtich/control box
Note fan and arms sold separately:
Fan with mounting bracket: 91025FA1
3m arm: 91005003
4m arm: 91005004
