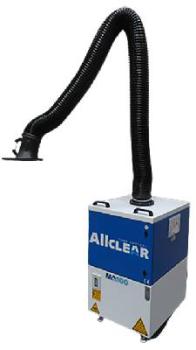

The Allclear MA100 is a compact and economical welding and light grinding fume extraction unit that features a 3-metre arm, cleanable filters, and an impact plate to prolong filter life. Its compact design makes it easy to move around the work area and its ergonomic design allows for easy access to all functions. Its unique internal mechanism in the joints of the acrobat arm prevents metal fatigue, protecting the integrity of the arm. The filter cleaning door provides easy and safe access to the cartridge filter, which has a 14.5m² surface and nanofiber structure for high filtration efficiency and long life. The suction hood is lightweight and durable, catching particles effectively. Additionally, the Allclear MA100 features a patented dust collection system, extending the life of the cartridge filter and allowing for safe and efficient dust removal, even when the machine is running. Optional HEPA and Carbon filters are also available. Incorporating technology such as:

Cleanable cartridge filter
High extraction performance
Ideal filtration rate

Features

Compact design - Takes up little space in the work area and allows for easy mobility.
Ergonomic design -This allows the user to access all functions.
Unique mechanism- The special equipment used in the joints of the acrobat arm with internal mechanism prevents metal fatigue and protects the integrity of the arm.
Filter cleaning door provides easy and safe access to the cartridge filter.
Cartridge filter 14.5m² surface and nanofiber structure provide very high filtration efficiency and long life.
Suction hood catches the particles with its large structure which is lightweight and durable.
Unique patented dust collection system - Thanks to the dust collection bin, the cartridge filter life is extended meaning safer dust removal is achieved and dust can be discharged even when the machine is running.

Motor size: 1.1kw
Voltage: 240v
Motor Power: 1.1kW
Mains Supply: 220 V / 50Hz
Maximum Air Flow: 3000m3 per hour
Air Flow at Suction Point: 1600m3 per hour
Area of Filter Cartridge: 14.5 m2
Filter Cleaning: Manual
Standard Arm Length: 3 metres
Body: Galvanised Steel
Fan: Aluminium
Noise: 74 dBA
Sound Insulation: Acoustic sponge
Dimensions mm (L x W x H): 780 x 600 x 1000
Weight: 100kgs
Filters: F9 Cartridge Filter (Part Number 91990116) Standard Hepa H13 Cartridge Filter (Part Number 91990118) Optional extra Carbon Filter (Part Number 91990120) Optional extra

Available options include:

HEPA filter
Carbon filter
