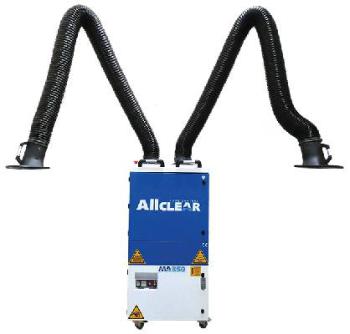

The Allclear MA350 AUTO is a versatile and durable mobile welding and grinding fume extraction unit that features two 3-meter arms and an auto-air rotating filter cleaning system. It is equipped with cleanable cartridge filters, a working hour counter, a filter fullness indicator, a malfunction warning, and a unique dust collection bin. The unit is mounted on caster wheels for easy mobility and has an impact plate above the filter to reduce the risk of burnout and increase the life of the filters. The compact and ergonomic design allows for easy access to all functions, and the special equipment used in the joints of the acrobat arm with internal mechanism prevents metal fatigue and protects the integrity of the arm. The filter cleaning door provides easy and safe access to the cartridge filter, which has a 14.5m² surface and nanofiber structure for very high filtration efficiency and long life. The suction hood is lightweight and durable, and the patented dust collection system extends the cartridge filter life for safer dust removal and allows for dust discharge even when the machine is running. Optional HEPA and carbon filters are available. Incorporating technology such as:

Cleanable cartridge filter
High extraction performance
Ideal filtration rate

Features

Compact design - Takes up little space in the work area and allows for easy mobility.
Ergonomic design - This allows the user to access all functions.
Unique mechanism - The special equipment used in the joints of the acrobat arm with internal mechanism prevents metal fatigue and protects the integrity of the arm.
Filter cleaning door provides easy and safe access to the cartridge filter.
Cartridge filter - 14.5m² surface and nanofiber structure provide very high filtration efficiency and long life.
Suction hood - catches the particles with its large structure which is lightweight and durable.
Unique patented dust collection system - Thanks to the dust collection bin, the cartridge filter life is extended meaning safer dust removal is achieved and dust can be discharged even when the machine is running.

Suction performance: min.1100, max. 1600 m³/hour per arm (total min 1100, max 3200 m³/hour)
Filter: 2 x Cartridge nanofiber with 29m²
Voltage: 415v
Arm/s: 2 x Hose type, internal support, 3m long
Weight: 137kg
Dimensions (W x H x L) mm: 700 x 780 x 1310
Motor Power: 2.2kw
Mains Supply: 415v
Maximum Air Flow: 3500m3 per hour
Air Flow at Suction Point: 1270m3 per hour
Area of Filter Cartridge: 2 x Cartridge 2 x 14m2
Filter Cleaning: Auto
Standard Arm Length: 2 x 3m long
Body: Galvanised Steel
Fan: Aluminium
Noise: 72 dba
Sound Insulation: Acoustic Sponge
Dimensions mm (L x W x H): 720 x 785 x 1480
Weight: 137kg
Filters: F9 Cartridge Filter (Part Number 91990116) Standard Hepa H13 Cartridge Filter (Part Number 91990118) Optional extra Carbon Filter (Part Number 91990122) Optional extra

Available options include:

HEPA filter
Carbon filter
