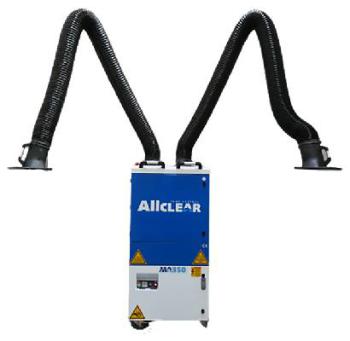

The Allclear MA350 is a versatile mobile welding and grinding fume extraction unit that features two 3-meter arms and advanced technology such as cleanable cartridge filters, a working hour counter, a filter fullness indicator, and a malfunction warning. It also has a special dust collection bin and an impact plate above the filter to reduce the risk of burnout and extend filter life. The unit is mounted on caster wheels for easy mobility and has a compact design that takes up minimal space in the work area. The ergonomic design allows for easy access to all functions. The unit also features a hose type arm that is resistant to harsh conditions and high temperatures, as well as a filter cleaning door for easy maintenance. Additionally, the unit has options for HEPA and carbon filters and a unique patented dust collection system that lengthens the life of the cartridge filter and ensures safe dust removal, even when the machine is running. Incorporating technology such as:
Cleanable cartridge filter
High extraction performance
Ideal filtration rate
Features
Compact design makes the unit take up little space in the work area and can be moved very easily.
Ergonomic design gives the user access to all functions without problems.
The special equipment used in the joints of the acrobat arm with an internal mechanism prevents metal fatigue and protects the integrity of the arm.
Hose Type arm is resistant to serious conditions and high temperatures.
The filter cleaning door allows easy and safe access to the cartridge filter. The Compressed air gun also provides quick and easy cleaning.
Cartridge filter, 29m² surface, nanofiber structure provides very high filtration efficiency and extended lifetime.
Suction hood catches the particles easily with its large structure which is Lightweight and durable.
The unique patented dust collection system drawer, lengthens the cartridge filter life, providing safer dust removal of dust which can be discharged even when the machine is running.
Thanks to the dust collection bin, the cartridge filter life is extended meaning safer dust removal is achieved and dust can be discharged even when the machine is running.
Motor size: 2.2kw
Suction performance: min.1100, max. 1600 m³/hour per arm (total min 1100, max 3200 m³/hour)
Filter: 2 x Cartridge nanofiber with 29m²
Voltage: 415v
Arm/s: 2 x Hose type, internal support, 3m long
Weight: 137kg
Dimensions (W x H x L) mm: 700 x 780 x 1310
Mains supply: 415v
Maximum airflow: 3500m3 per hour
Air Flow at Suction Point: 1270m3 per hour
Area of Filter Cartridge: 2 x Cartridge 2 x 14m2
Filter Cleaning: Manual
Standard Arm Length: 2 x 3m long
Body: Galvanised Steel
Fan: Aluminium
Noise: 72 dba
Sound Insulation: Acoustic Sponge
Filters: F9 Cartridge Filter (Part Number 91990116) Standard Hepa H13 Cartridge Filter (Part Number 91990118) Optional extra Carbon Filter (Part Number 91990122) Optional extra
Available options include:
HEPA filter
Carbon filter
