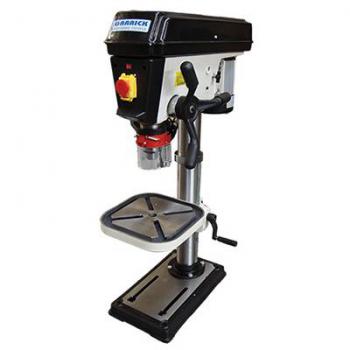

Manufactured to a premiuquality standard to suit heavy-duty applications.

•Square tables for larger work area, with 'T' slots for solid clamping
•Tables tilt and rotate
•Solid one piece Cast Iron operating handles
•Safety Guard with flip up cover over chuck as standard
•Emergency stop switches
•Heavy-duty precision depth stops
•Quick action, positive motor adjustment for belt tensioning
•Rack & pinion table height adjustment
•Column & Quill precision machined frothick wall tube for rigidity
•Work light under head (bulb not included for transport reasons)
•Powerful 240V AluminiuTEFC motors
•Includes Drill Chuck & Arbor, Chuck Key and Drill Drift

Brand:Garrick
Stand Type:Pedestal
Machine Type:Column & Quill Precision
Radial (Yes/No):No
Swing Distance:356 mm
Spindle Taper Size:2MT
Spindle Travel Length:80 mm
Drilling Capacity:20 mm
Maximum Chuck Capacity:3 to 16 mm
Number of Spindle Speeds:12
Spindle Speed:120 to 2580 rpm
Voltage Rating:240 V
Height:1000 mm
